Systems for the production of plastic closures

Complete lines and stand alone machines for the production of plastic closures, in continuous compression moulding.
Your 360° integrated supplier: over 1900 compression molding systems installed worldwide, more than 10.000 stacks produced every year, and an R&D who developed more than 600 caps design.

NUMBERS AND DATA

  • output up to 2000 closures/min
  • diameter up to 52 mm
  • weight up to 6 g

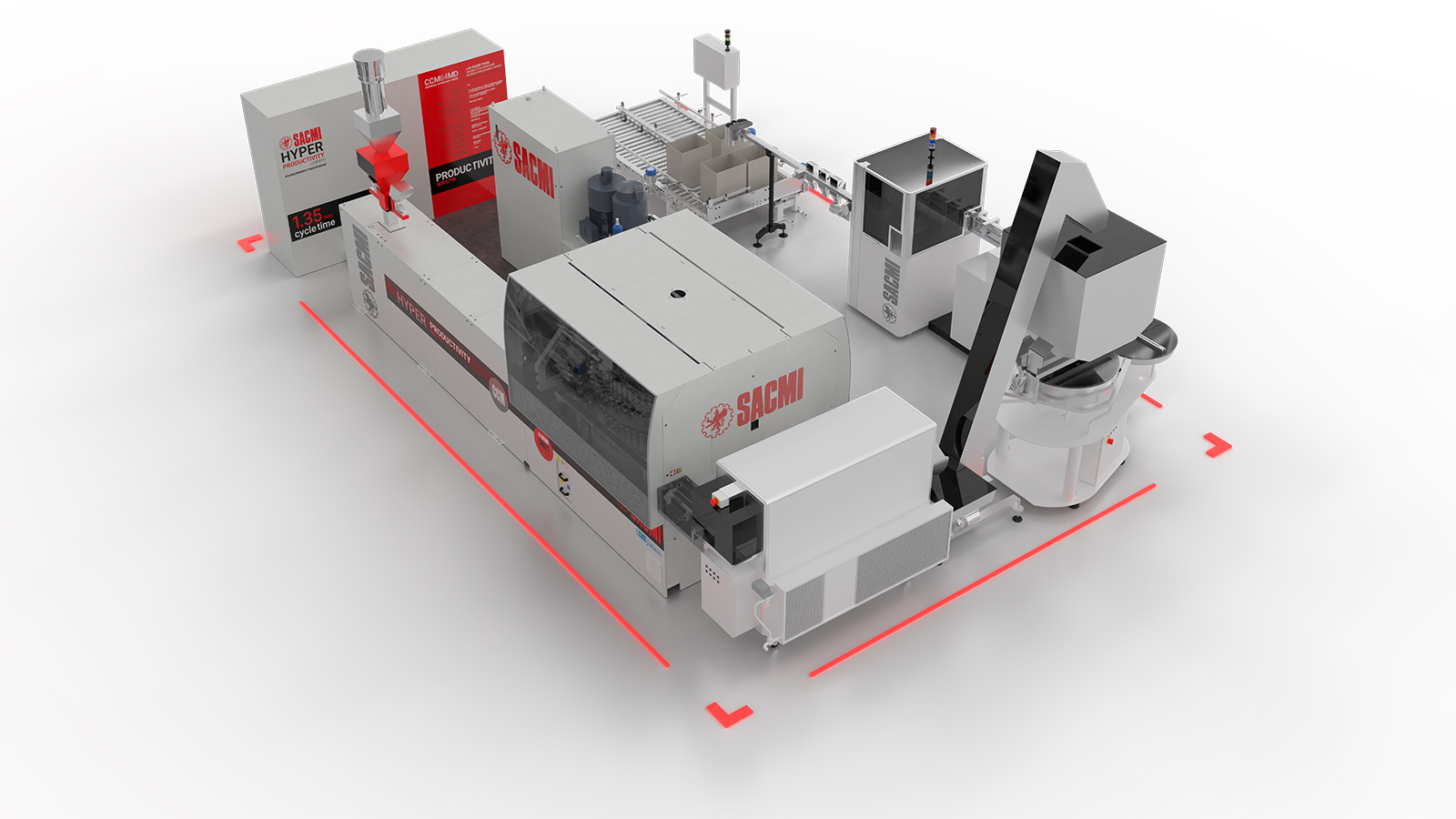

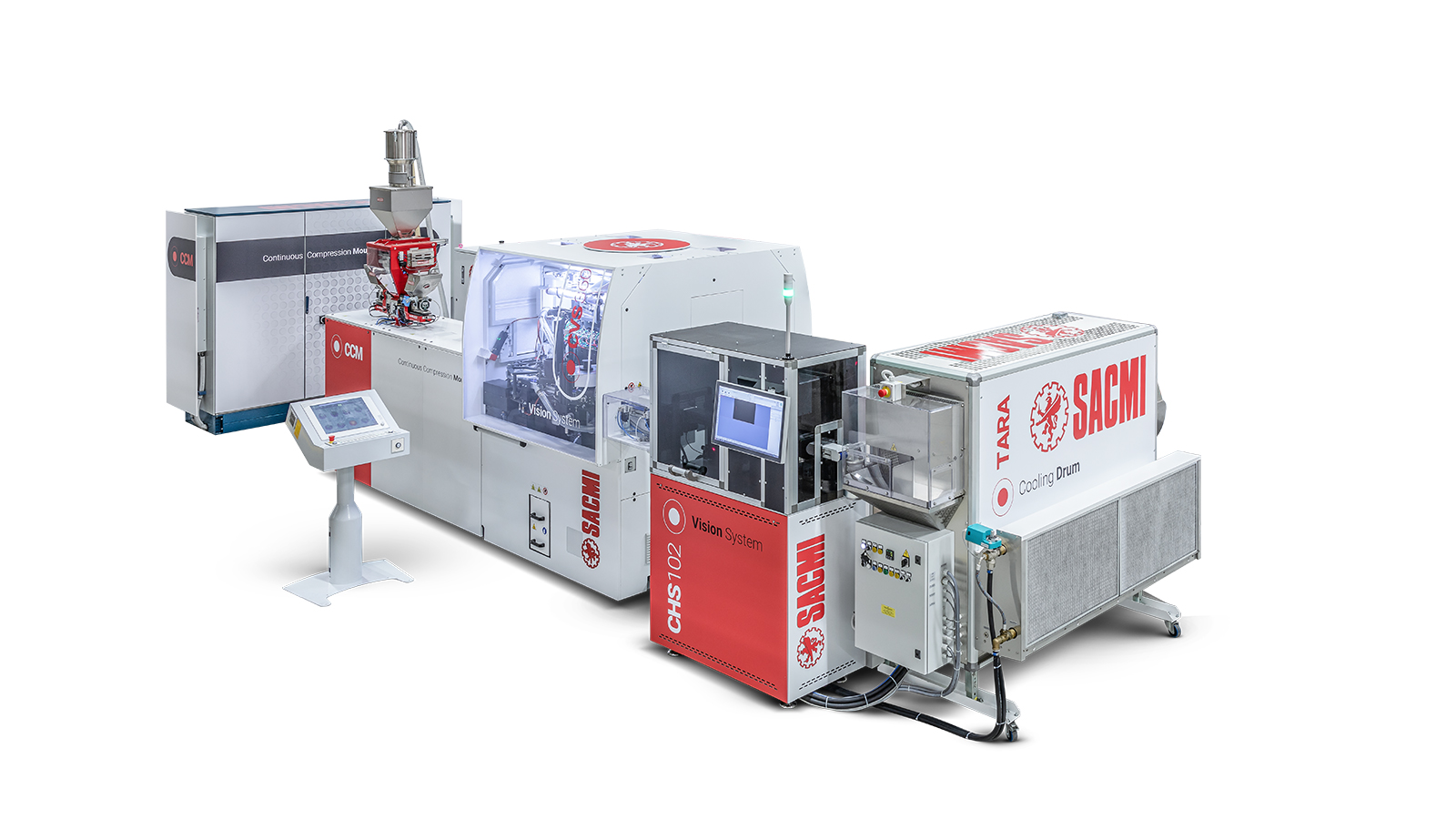

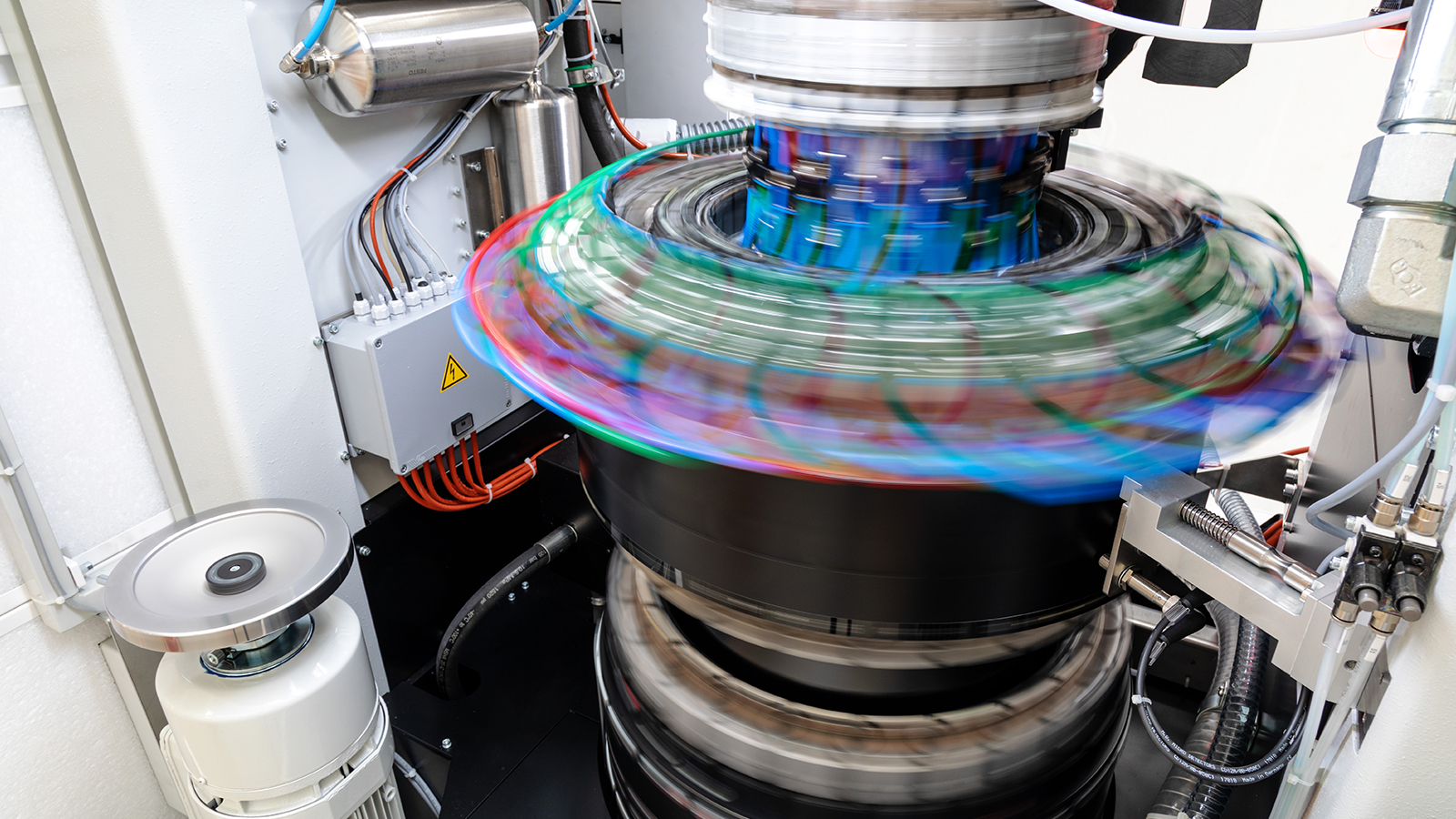

CCM - Continuous Compression Moulding Machine

CCM hydraulic rotary presses are specially designed to produce thermoplastic products by means of compression.
A continuous work cycle is carried out, during which the plastic material is fed by a plasticization unit, cut into suitably sized pellets and then inserted inside the cavities.
Compression moulding is already a well known technology worldwide. More than a half of plastic beverage caps are produced through compression.

Read more

CCM - Continuous Compression Moulding Machine

ADVANTAGES OF COMPRESSION MOULDING TECHNOLOGY

1

HIGHER PRODUCTIVITY thanks to a shorter cycle time. The lower extrusion temperature allows the mold to cool the cap faster.

2
ENERGY SAVINGS due to the lower extrusion temperature. With less energy needed to heat the plastic, less is required to cool it.
3
PRODUCT WITH BETTER MECHANICAL PROPERTIES. Because plasticizing occurs at low temperatures and with no hot runner, the raw material maintains its characteristics and product performance is improved.
4
CONSTANT WEIGHT AND SIZE OF THE PRODUCT is a winning feature of this technology, exceeding the best results of injection molding.  A cooler product exiting the mold means less shrinkage and therefore less size variability.
5
RAPID, EASY MAINTENANCE thanks to independent molds. Molds are replaced quickly and individually; maintenance is performed at the stand while the machine is operating.
6
FAST, ECONOMICAL COLOR CHANGEOVER. The simplicity of the plasticizing unit and the absence of the hot runner speed up color changeover and considerably reduce waste of raw material during and after color switches.
CCM24

CCM24

Continuous Compression Moulding Machine

24 cavities, productivity up to 1000 closures/min, max closure diameter 38 mm.

CCM32

CCM32

Continuous Compression Moulding Machine

32 cavities, productivity up to 1050 closures/min, max closure diameter 52 mm.

CCM48

CCM48

Continuous Compression Moulding Machine

48 cavities, productivity up to 2000 closures/min, max closure diameter 38 mm.

CCM64

CCM64

Continuous Compression Moulding Machine

64 cavities, productivity up to 1600 closures/min, max closure diameter 52 mm.

CCM Video

Continuous Compression Moulding Machine

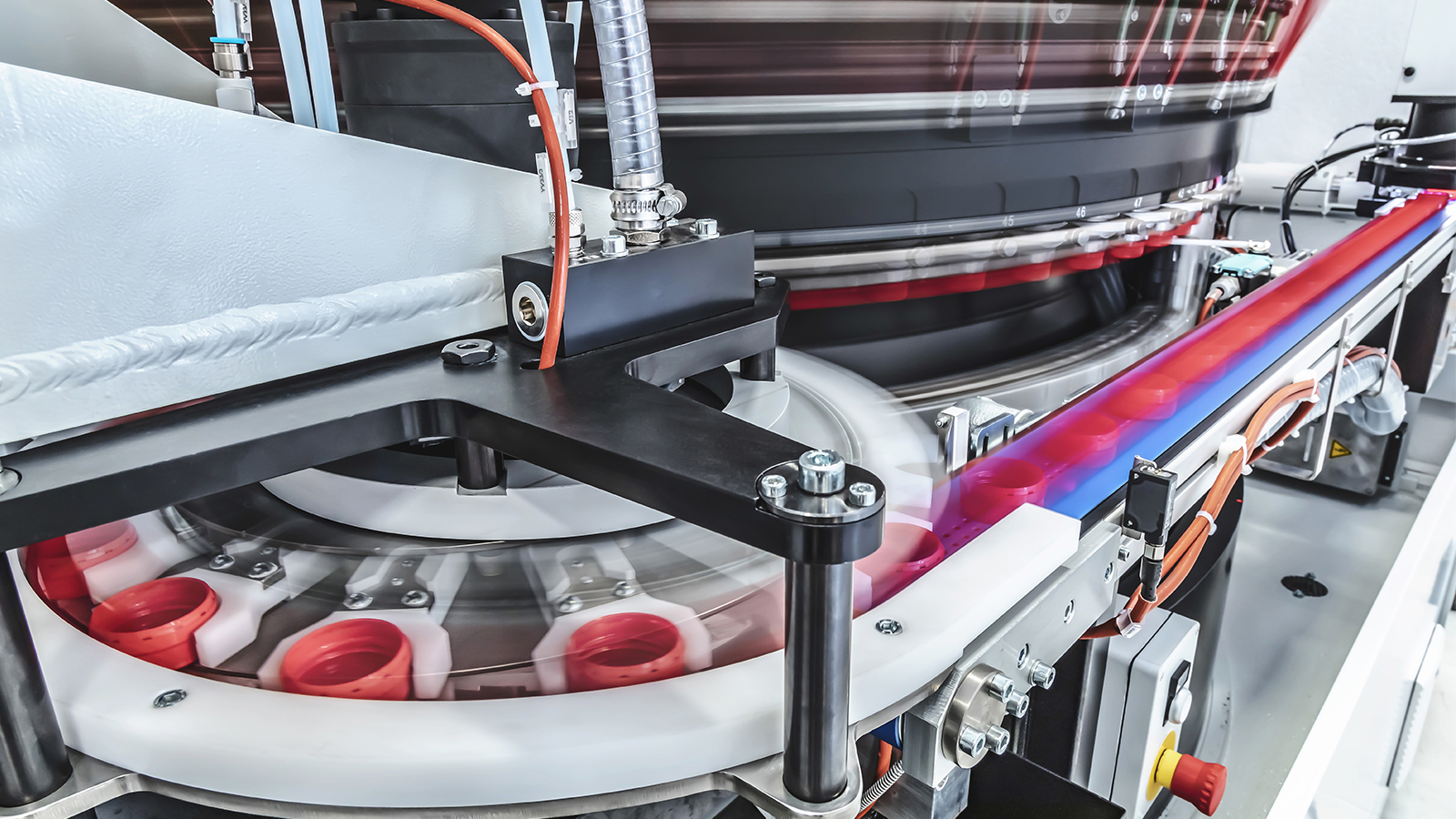

Slitting & folding of caps

The functional importance of the tamper evident band makes the slitting machine an extremely important piece of machinery.
The possibility of changing the slitting configuration (number of bridges, thickness of bridges, etc..) has an impact on flexibility and on bridges breaking force, thus fulfilling end users requirements.
“Flap” bands in plastic caps help during the capping phase and properly match with the bottle locking ring.
Such bands need a folding process to be performed after the making of the cap.
We provide machines both for scoring operation (SCM), folding operation (FLM) and also for both operation in a combined, cost-effective step (SFM).

Read More

Slitting & folding of caps

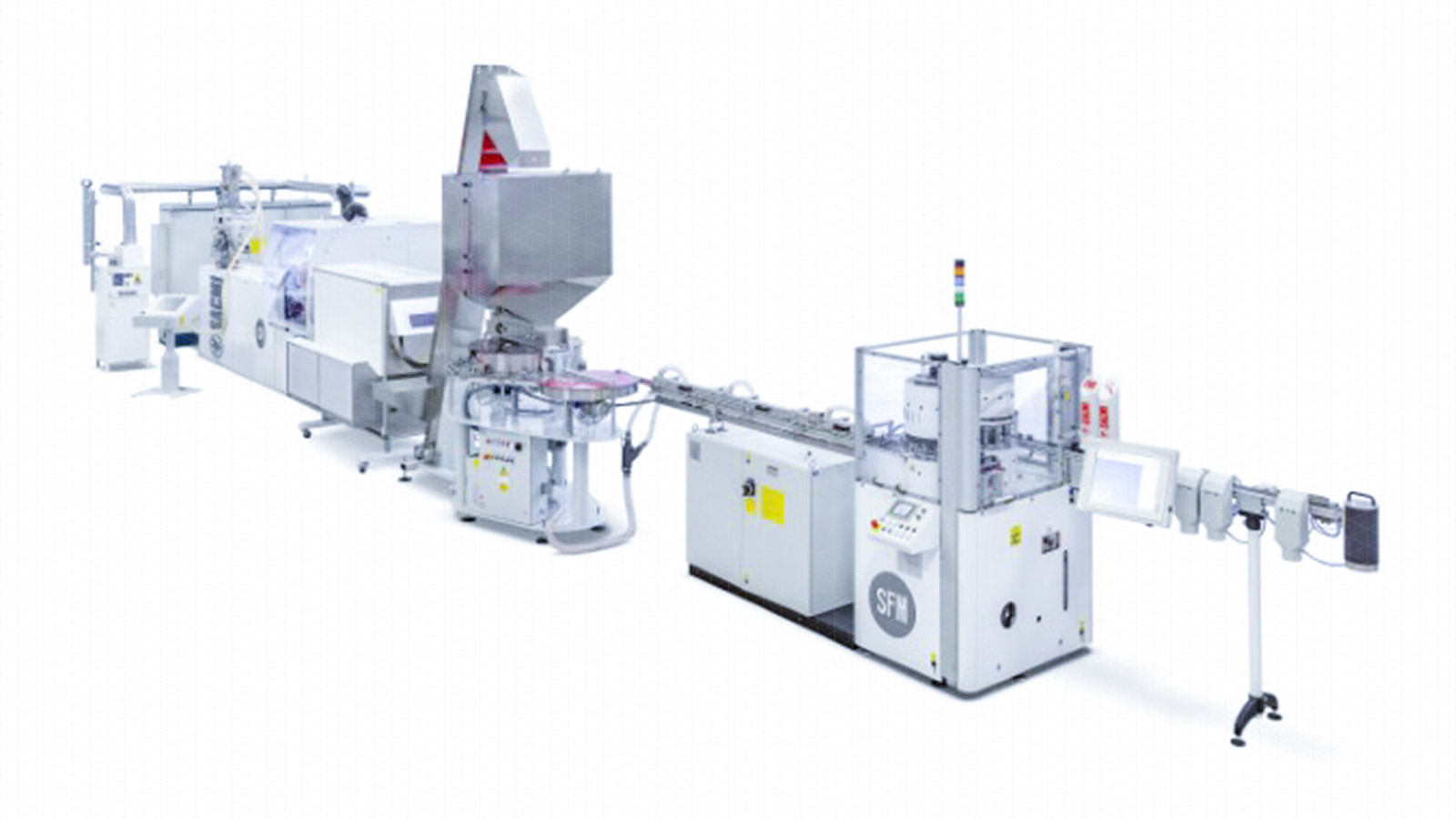

SFM08 / SFM12

Caps scoring & folding system

This solution provides both the scoring operation and the folding one in a combined, cost-effective step. The possibility of changing the slitting configuration (number of bridges, thickness of bridges, etc..) has an impact, amongst others, on flexibility and on bridges breaking force, thus fulfilling end users requirements. On the other hand, “flap” or “corrugated” bands in plastic caps help during the capping phase and properly match with the bottle locking ring.Read more

SCM08 / SCM12

Caps scoring system

Closure bridges can be made either directly into the mould during the cap forming phase, or by slitting process in a post moulding stage. The possibility of changing the slitting configuration (number of bridges, thickness of bridges, etc..) has an impact, amongst others, on flexibility and on bridges breaking force, thus fulfilling end users requirementsRead more

FLM12

Caps folding system

“Flap” bands in plastic caps help during the capping phase and properly match with the bottle locking ring. Such bands need a folding process to be performed after the making of the capRead more

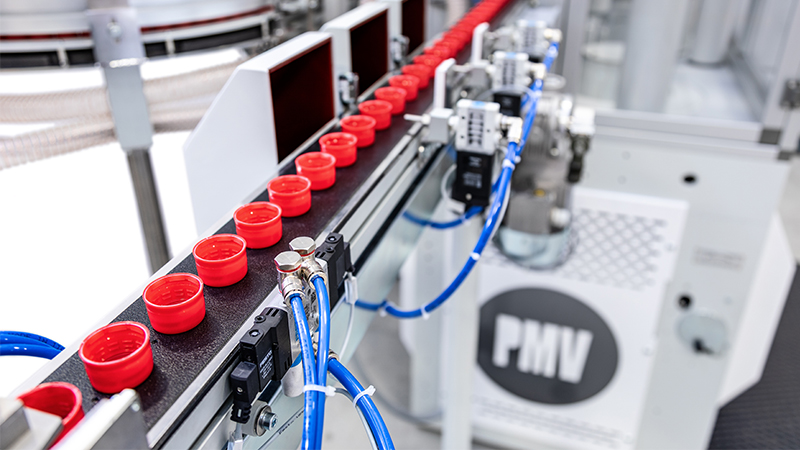

Lining for plastic closures

In order to ensure proper sealing and retention of CO2 levels with highly carbonated beverages, we mould a PE/EVA liner into the cap’s shell. For that purpose we have developed two distinct and separate technologies, whose name is self-descriptive: in-shell moulding and out-shell moulding.

Read more

Lining for plastic closures

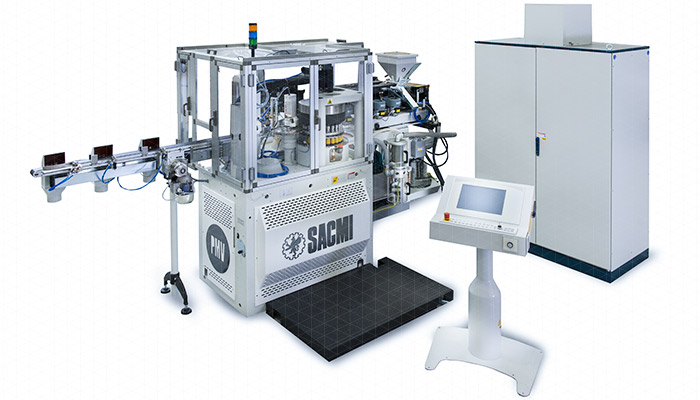

PMV224 lining machine

PMV224

in-shell lining machine

24 punches, productivity up to 1800 closures/min, max closure diameter 33 mm.

PMV238 lining machine

PMV238

in-shell lining machine

20 punches, productivity up to 800 closures/min, max closure diameter 43 mm.

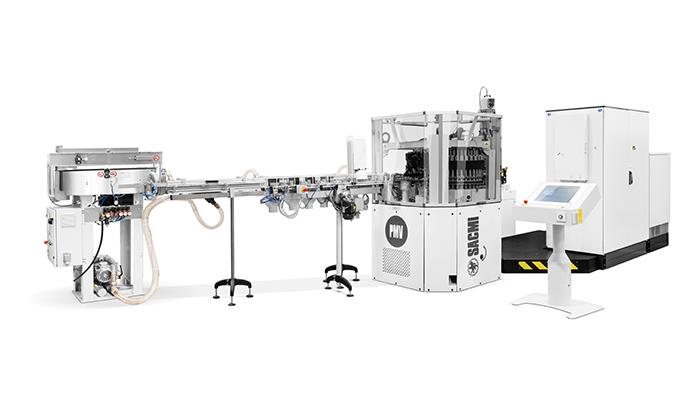

PMV230 lining machine

PMV230

in-shell lining machine

30 punches, productivity up to 1200 closures/min, max closure diameter 43 mm.

PMD200 lining machine

PMD200

out-shell lining machine

24 punches, productivity up to 800 closures/min, max closure diameter 28 mm.

PMD230 lining machine

PMD230

out-shell lining machine

30 punches, productivity up to 1200 closures/min, max closure diameter 38 mm.

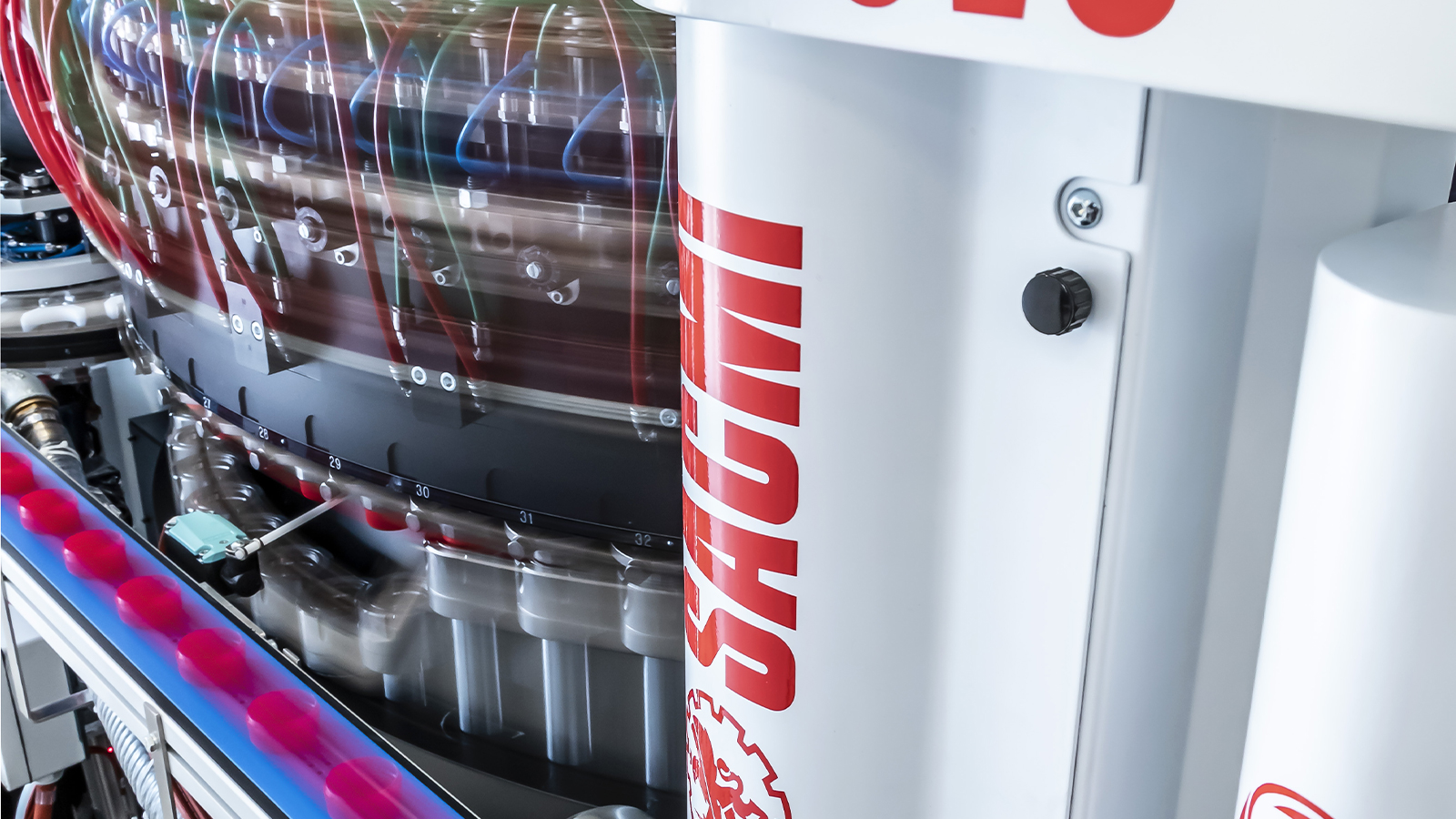

COLORA CAP - digital printing for plastic closures

COLORA CAP is system for digital cap printing, offering the widest range of decorating options to make the most of the communication potential.
The process developed enables to use high-definition digital images and import them into the printing system in just a few minutes, starting a new production batch without any format changeover costs.

NO LIMITS TO IMAGINATION

Read More

COLORA CAP - digital printing for plastic closures
